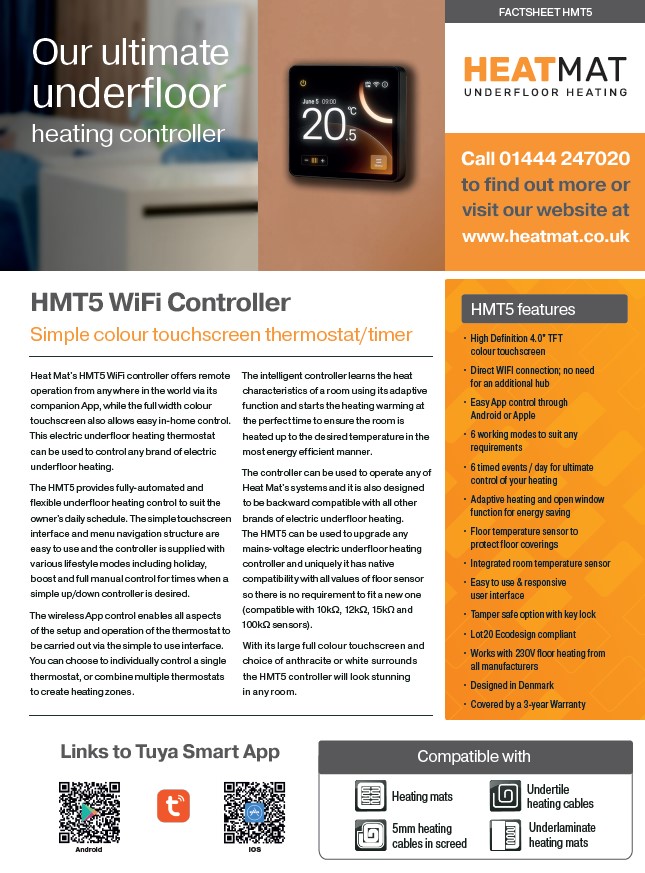

HMT5 WiFi Thermostat Factsheet

Download









HMT-T5W-ANTH







HMT-T5W-WHIT

HMT5 WiFi Thermostat

A stylish WiFi enabled thermostat with companion App for easy remote heating control

Category: HMT5 WiFi Thermostat
Category:

HMT5 WiFi Controller – Ultimate Electric Underfloor Heating Thermostat

The HMT5 WiFi controller combines sophisticated style with ultimate functionality, featuring a high-definition 4.0” colour touchscreen for intuitive operation. With built-in WiFi, there's no need for additional hubs—simply connect directly to your smartphone using the companion App. The user-friendly interface allows seamless navigation, providing complete control whether you're at home or away.

Designed for versatility, the HMT5 offers 4 or 6 timed heating events per day, adaptive heating to maximise energy efficiency, and an open window function that prevents energy waste. This intelligent controller includes a built-in room temperature sensor and compatibility with all common floor sensor types (10k, 12k, 15k, and 100k), ensuring seamless integration with any electric underfloor heating system.

Compliance with Lot 20 Ecodesign standards highlights its commitment to efficiency and sustainability. Each thermostat comes with a generous 3-year warranty, reflecting Heat Mat’s confidence in superior quality and performance.

HMT5 WiFi Thermostat Features

  • High-definition 4.0” colour touchscreen
  • Direct WiFi connection; no additional hub required
  • Easy smartphone App control (iOS & Android)
  • Adaptive heating function learns room characteristics
  • Open window detection for energy-saving
  • Integrated room and floor temperature sensors
  • 4 or 6 timed heating events per day
  • Manual, Boost and Holiday lifestyle modes
  • Easy-to-use and responsive user interface
  • Tamper-safe option with key lock
  • Lot 20 Ecodesign compliant
  • Compatible with all major electric underfloor heating brands
  • 18th Edition compliant and UKCA marked
  • Designed in Denmark and covered by a 3-year warranty

Available in both Black and White

Model Numbers:

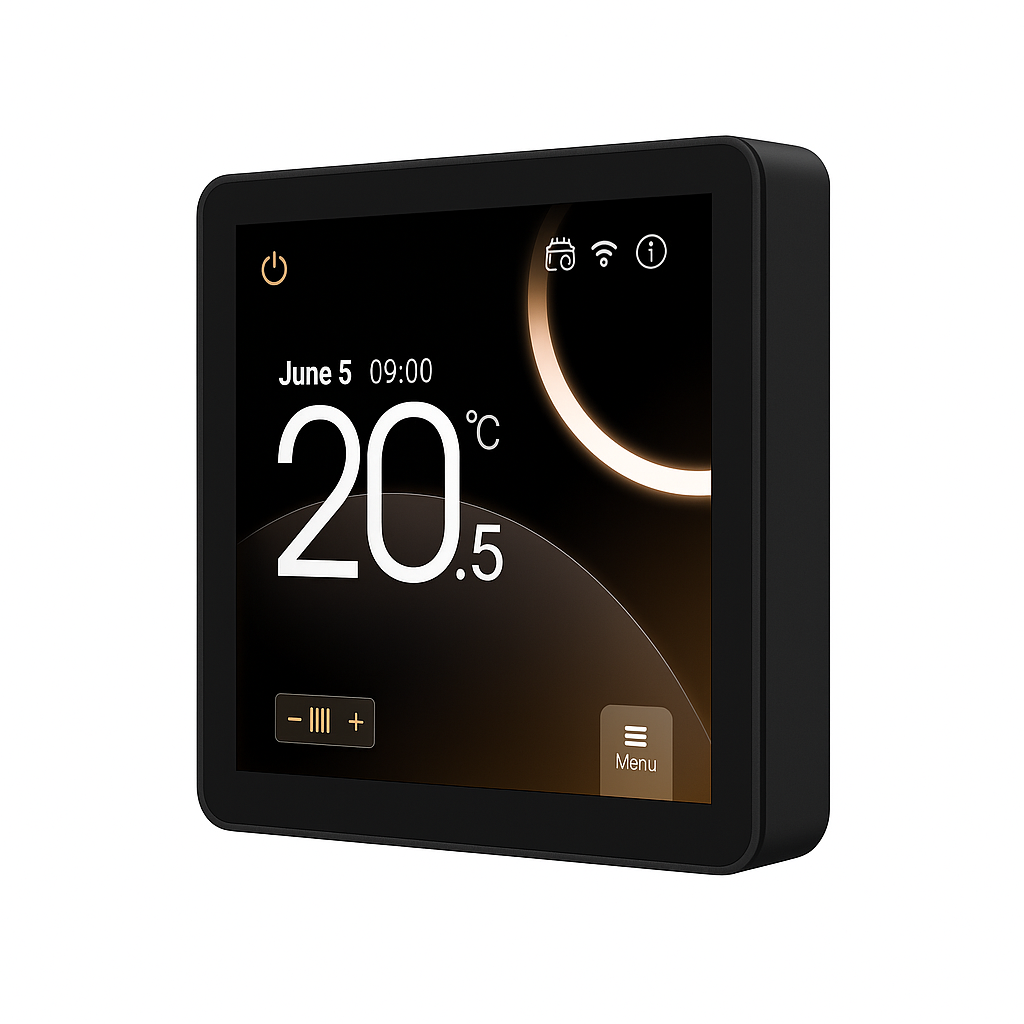

HMT-T5W-ANTH – ANTHRACITE (BLACK)

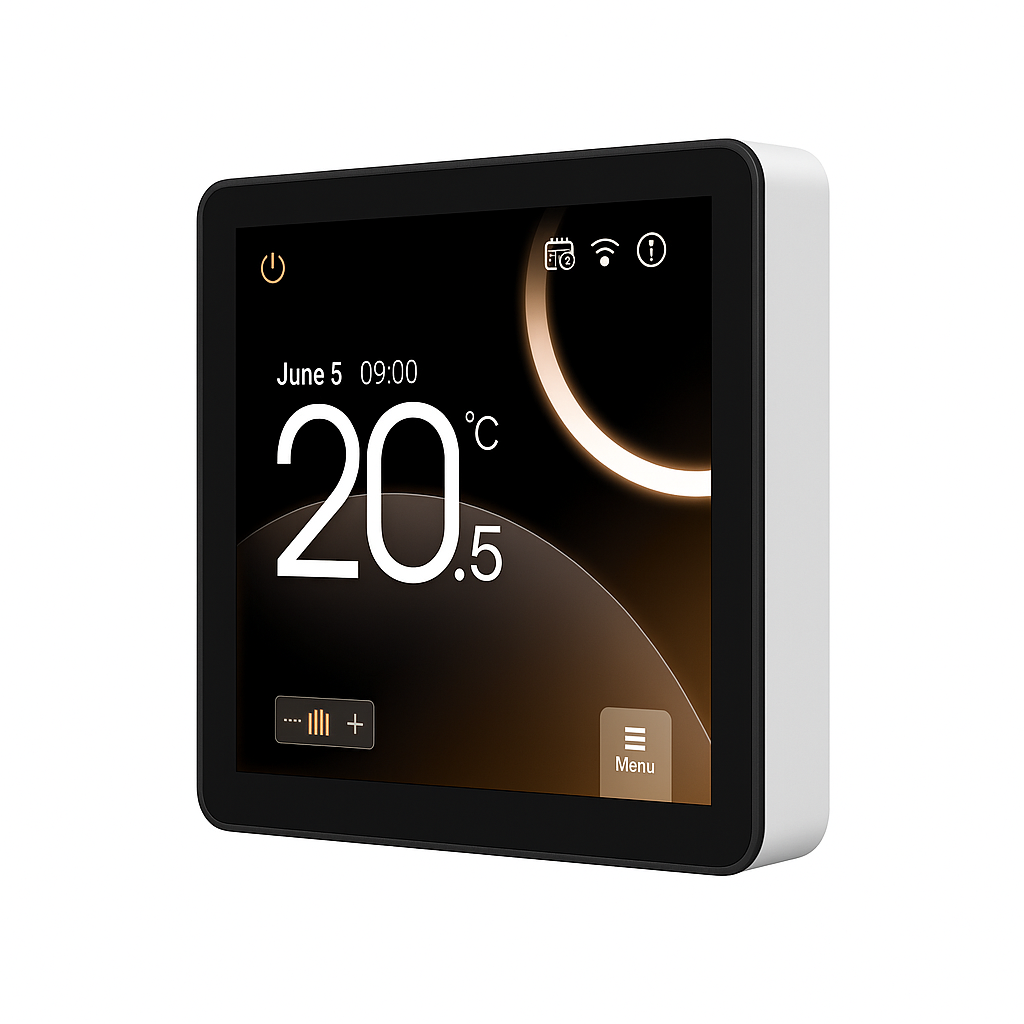

HMT-T5W-WHIT – WHITE

Simple Connection

The HMT5 thermostat includes a built-in connection wizard, making it quick and easy to connect to your WiFi network—no additional hub is required. Each thermostat can be connected in seconds, and multiple thermostats can be controlled via a single App across multiple devices. If a wireless connection isn’t available, all functions can still be accessed via the touchscreen interface.

App Control

Using the Tuya Smart App, you can remotely manage your heating system from anywhere in the world. The App allows for full setup, temperature control, mode selection, and zone management when using multiple thermostats.

Sensor Settings

The HMT5 thermostat includes both an integrated room temperature sensor and an external floor sensor. It is compatible with a wide range of floor sensors (10k, 12k, 15k, and 100k), making it suitable for replacing existing thermostats without the need to change sensors. Sensor configuration options allow control based on floor temperature only (e.g. when the thermostat is outside the heated room), room temperature only (for other heating types), or room temperature with floor limit to protect floor coverings.

Lifestyle Modes

The thermostat features several user-friendly operating modes that override the programmed schedule for added flexibility.

Manual mode – Converts the controller into a simple manual up/down thermostat with no scheduling. Adjust the temperature directly from the home screen.

Boost mode – Temporarily activates the heating at full power for a set time to warm a cold room quickly. Once the boost period ends, the system returns to its programmed schedule.

Holiday mode – Sets the heating to a minimum temperature during your time away. Once the start and end dates are entered, the thermostat keeps the floor above freezing and ensures a warm return.

HMT5 WiFi Thermostat Technical Data

  • Supply Voltage: 100–240 V AC +10%, 50/60Hz
  • Output relay: Max 16A
  • Interrupter: 16A
  • Temperature range: +5 / +40°C
  • Floor limit range: +5 / +40°C
  • Heating schedule: 4- or 6-event program
  • Wireless:WiFi via direct connection – no hub required
  • Battery backup: 5 years
  • Ambient temperature: 0 / +40°C during operation
  • On/Off differential: 0.4°C
  • Regulation principle: PWM / PL
  • Housing: IP21
  • External sensor type: NTC (10k), length 3m
  • Sensor compatibility: 10k, 12k, 15k, 100k
  • Dimensions (H/W/D): 86 / 86 / 41mm (23mm depth)
  • Recommended backbox: 47mm depth
  • Colour options: White RAL9003, Black RAL7021
  • Display: 4.0" TFT – Resistive touch
  • Standards: UKCA / CE / RoHS / Lot20 Ecodesign
  • Approvals: CE, UKCA

Heating systems must always be controlled by a suitable electric underfloor heating thermostat with floor temperature limitation. Heat Mat thermostats are rated to 16 Amps, and if a system exceeds this loading a suitably rated contactor should be used. The circuit must be protected by a 30mA RCD and a suitably rated fuse or circuit breaker.

QR codes to connect to HMT5 companion App

Product Code Description TSI Code
HMT-T5W-ANTH 16A Black WiFi Thermostat 438400272
HMT-T5W-WHIT 16A White WiFi Thermostat 438400285
